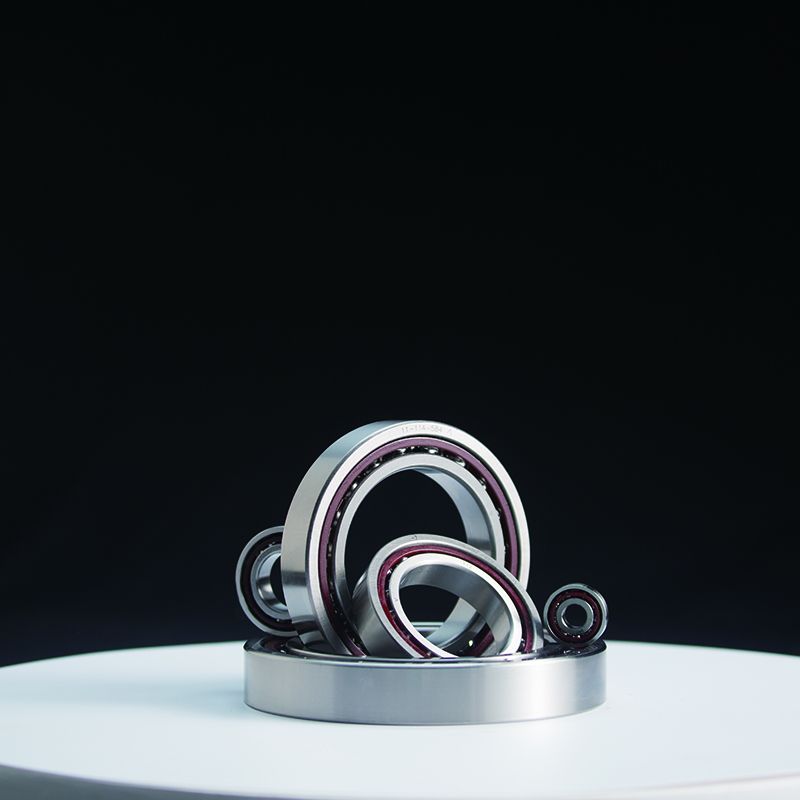

718, 719,70, 72 series single row angular contact ball bearing

A new generation of precision angular contact ball bearings have been developed by ZYS for the machine tool spindle. Comparing with general precision bearings, angular contact bearings are greatly improved in terms of rotation accuracy, limit speed, carrying capacity and reliability; and the size range is also wider. ZYS is able to produce 718 series, 719 series, 70 series and 72 series high speed bearings for machine tool, motor, spindle, power tool and can also develop new products for special application conditions according to customers' needs and provide services for customers.

PRODUCT LIST
RELATED INDUSTRIES

Bearing designation ZYS	Boundary dimension								α=15°（C）											α=25°（AC）
									Rated load					Limit speed						Rated load					Limit speed
	d				D		B		Cr	C0r				Grease		Oil				Cr	C0r				Grease	Oil
	mm								KN					r/min						KN					r/min
71907	35				55		10		11				10.9	26000				40000		10.4			10.3		20000				34000
71908	40				62		12		14				14.2	20000				34000		13.3			13.5		18000				30000
71909	45				68		12		14.7				16.1	18000				30000		13.9			15.2		17000				28000
71910	50				72		12		19				21.2	17000				28000		17.9			20.1		15000				24000
71911	55				80		13		23.7				27.4	15000				24000		22.4			26		14000				22000
71912	60				85		13		24.8				30.3	14000				22000		23.3			28.7		13000				20000
71913	65				90		13		25.1				31.9	13000				20000		23.6			30.2		12000				19000
71914	70				100		16		34.5				43.4	12000				19000		32.6			41.2		11000				18000
71915	75				105		16		25				45.6	11000				18000		33			43.2		95000				16000
71916	80				110		16		35.5				47.8	10000				17000		33.5			45.3		9000				15000
71917	85				120		18		46.5				61.9	9500				16000		43.8			58.6		8500				14000
71918	90				125		18		47.2				64.8	9000				15000		44.5			61.4		8000				13000
71919	95				130		18		47.9				67.8	9000				15000		45.2			64.1		8000				13000
71920	100				140		20		60.4				84.4	8500				14000		56.9			79.9		8000				13000
71921	105				145		20		61.4				88.2	8000				13000		57.8			83.5		7500				12000
71922	110				150		20		62.3				91.9	7500				12000		58.7			87		7000				11000
71924	120				165		22		73.7				107.6	7000				11000		69.5			101.9		6700				10000
71926	130				180		24		76.3				117.1	6700				10000		71.9			110.9		6000				9000
71928	140				190		24		78.9				126.4	6000				9000		74.4			119.7		5600				8500
71930	150				210		28		118.2				175.1	5600				8500		111.4			165.8		5000				7500
71932	160				220		28		123.6				191.2	5000				7500		116.5			181.1		4800				7000
71934	170				230		28		125.7				200	4800				7000		118.5			189.4		4300				6300
71936	180				250		33		159.7				249.1	4500				6700		150.6			235.9		4000				6000
71938	190				260		33		162.8				260.8	4300				6300		153.5			247		3800				5600
71940	200				280		38		198.4				311.4	3800				5600		187.1			294.9		3600				5300
71944	220				300		38		206.6				341.1	3600				5300		194.8			323		3200				4800
71948	240				320		38		219.2				384.2	3200				4800		206.7			363.8		3000				4500
71952	260				360		46		284.6				528.8	3000				4500		268.3			500.8		2600				4000
71956	280				380		46		288.7				554.6	2600				4000		272.2			525.5		2200				3600
Bearing designation ZYS		Boundary dimension							α=15°（C）										α=25°（AC）
									Rated load						Limit speed				Rated load					Limit speed
		d		D				B	Cr			C0r			Grease			Oil	Cr			C0r		Grease			Oil
		mm							KN						r/min				KN					r/min
71807		35		47				7	4.6			5.5			26000			40000	4.3			5.2		24000			38000
71808		40		52				7	4.8			6.2			24000			38000	4.5			5.8		20000			34000
71809		45		58				7	4.9			6.7			20000			34000	4.6			6.3		18000			30000
71810		50		65				7	7.4			10			18000			30000	6.9			9.5		16000			26000
71811		55		72				9	10.2			13.8			16000			26000	9.6			13.1		15000			24000
71812		60		78				10	13.4			18			15000			24000	12.6			17		14000			22000
71813		65		85				10	13.4			18.8			14000			22000	12.6			17.8		13000			20000
71814		70		90				10	13.8			20.3			13000			20000	13			19.1		12000			19000
71815		75		95				10	14.2			21.7			12000			19000	13.3			20.5		11000			18000
71816		80		100				10	14.5			23.1			11000			18000	13.6			21.8		9500			16000
71817		85		110				13	21.5			32.2			10000			17000	20.2			30.5		9000			15000
71818		90		115				13	21.7			33.5			9500			16000	20.4			31.6		8500			14000
71819		95		120				13	21.9			34.7			9000			15000	20.6			32.8		8500			14000
71820		100		125				13	22.5			37			8500			14000	21.2			34.9		8000			13000
71821		105		130				13	22.7			38.3			8500			14000	21.3			36.1		8000			13000
71822		110		140				16	31.8			51.6			8000			13000	29.9			48.7		7500			12000
71824		120		150				16	33.1			56.9			7000			11000	31.1			53.7		6700			10000
71826		130		165				18	38.7			67.6			6700			10000	36.3			63.8		6000			9000
71828		140		175				18	44.8			79.2			6000			9000	42			74.7		5600			8500
71830		150		190				20	51.2			92			5600			8500	48			86.8		5000			7500
71832		160		200				20	52.4			97.7			5000			7500	49.2			92.2		4800			7000
71834		170		215				22	66.5			123.4			4800			7000	62.4			116.5		4300			6300
71836		180		225				22	83.8			151.6			4800			7000	78.6			143		4300			6300
71838		190		240				24	100			179			4500			6700	94.4			169.2		4000			6000
71840		200		250				24	102.5			189.3			4300			6300	96.2			178.6		3800			5600
71844		220		270				24	106.4			209.3			3800			5600	99.8			197.4		3400			5000
71848		240		300				28	145			277			3400			5000	136			261		3000			4500
71852		260		320				28	148.8			299.3			3100			4600	139.6			282.3		2700			4100
71856		280		350				33	182			363.8			2800			4100	170.8			343.3		2400			3700
Bearing designation ZYS		Boundary dimension							α=15°（C）										α=25°（AC）
									Rated load						Limit speed				Rated load					Limit speed
		d	D					B	Cr			C0r			Grease			Oil	Cr			C0r		Grease			Oil
		mm							KN						r/min				KN					r/min
7200		10	30			9			6.4		3.8				55000		84000		6.3			3.7		52000				79000
7201		12	32			10			7.2		4.5				52000		79000		6.9			4.3		47000				69000
7202		15	35			11			9.1		5.8				47000		69000		8.8			5.6		42000				62000
7203		17	40			12			11.3		7.4				39000		59000		10.9			7.1		37000				55000
7204		20	47			14			13.1		9.6				33000		49000		12.6			6.2		29000				44000
7205		25	52			15			16.8		13.1				29000		44000		16.1			12.5		25000				39000
7206		30	62			16			23.4		18.8				23000		37000		22.3			18		19000				33000
7207		35	72			17			25.8		22.9				17000		29000		24.5			21.9		16000				27000
7208		40	80			18			34.1		30.9				16000		27000		32.5			29.5		14000				23000
7209		45	85			19			35.5		33.8				15000		25000		33.8			32.3		13000				21000
7210		50	90			20			43.3		40.6				14000		23000		41.3			38.7		13000				21000
7211		55	100			21			53.6		51.1				13000		21000		51.1			48.8		12000				19000
7212		60	110			22			55.8		56.2				11000		18000		53			53.5		10000				17000
7213		65	120			23			67.5		69				10000		17000		64.2			65.8		8500				15000
7214		70	125			24			70.2		74.6				9000		16000		66.6			71.7		8000				14000
7215		75	130			25			72.7		80.2				8500		15000		68.9			76.3		7500				13000
7216		80	140			26			86.5		96.5				8000		14000		82.1			91.9		7000				12000
7217		85	150			28			97.4		107.5				7500		13000		92.5			102.4		6500				11000
7218		90	160			30			121.9		131.3				7000		12000		115.8			124.6		6000				10000
7219		95	170			32			128.9		145.1				6500		11000		122.5			138.3		5700				9000
7220		100	180			34			146.2		165.9				6000		10000		138.9			158.2		5700				9000
7221		105	190			36			164.3		118.2				6000		10000		156.3			179.5		5300				8500
7222		110	200			38			170.4		202.5				5700		9000		161.8			193		5000				8000
7224		120	215			40			175.4		218.4				5000		8000		166.3			207.9		4300				7000
7226		130	230			40			200.6		258.3				4600		7500		190.4			246.2		4000				6500
7228		140	250			42			223.6		306.6				4000		6500		212.3			292.2		3500				5700
7230		150	270			45			240.9		341.5				3500		5700		228.7			325.5		3000				5000
7232		160	290			48			248.6		365.8				3300		5300		236.1			348.6		2800				4600
7234		170	310			52			300.2		459.2				2800		4600		285			473.6		2600				4300
7236		180	320			52			305		390				3800		5600		290			365		3400				5000
7238		190	340			55			315		415				3400		5000		300			390		3200				4800
7240		200	360			58			325		440				3200		4800		310			415		3000				4500
7244		220	400			65			400		560				2800		4300		380			540		2600				4000
Bearing designation ZYS		Boundary dimension							α=15°（C）										α=25°（AC）
									Rated load						Limit speed				Rated load					Limit speed
		d	D			B			Cr		C0r				Grease		Oil		Cr			C0r		Grease				Oil
		mm							KN						r/min				KN					r/min
7007		35	62			14			19.3		17.5				20000		34000		18.3			16.6		19000				32000
7008		40	68			15			19.9		19.1				19000		32000		18.9			18.2		17000				28000
7009		45	75			16			26.7		25.3				17000		28000		25.4			24.1		16000				26000
7010		50	80			16			27.6		27.5				16000		26000		26.2			26.2		15000				24000
7011		55	90			18			36.7		37.1				14000		22000		34.8			35.3		13000				20000
7012		60	95			18			37.8		40				14000		22000		35.8			38		12000				19000
7013		65	100			18			38.9		42.9				13000		20000		36.8			40.7		11000				18000
7014		70	110			20			49.9		55.5				12000		19000		47.2			52.7		10000				17000
7015		75	115			20			51.3		59.2				11000		18000		48.5			56.2		9500				16000
7016		80	125			22			61.6		70.4				10000		17000		58.3			66.9		9000				15000
7017		85	130			22			63.3		75				9500		16000		59.9			71.3		8500				14000
7018		90	140			24			66.9		84				9000		15000		63.2			79.7		8000				13000
7019		95	145			24			79.1		97.6				8500		14000		74.8			92.7		7500				12000
7020		100	150			24			81.2		103.3				8000		13000		76.7			98		7000				11000
7021		105	160			26			93.9		118.2				7500		12000		88.8			112.2		7000				11000
7022		110	170			28			110.4		139.8				7000		11000		104.4			132.8		6700				10000
7024		120	180			28			112.7		148.7				7000		11000		106.5			141.1		6700				10000
7026		130	200			33			144.8		190.8				6700		10000		136.8			181		6000				9000
7028		140	210			33			148.7		202.6				6000		9000		140.4			192.2		5600				8500
7030		150	225			35			168.4		232.5				5600		8500		159.1			220.6		5000				7500
7032		160	240			38			189.1		264.5				5000		7500		178.6			251		4800				7000
7034		170	260			42			205.6		299.3				4800		7000		194.2			284		4300				6300
7036		180	280			46			229.5		352.1				4500		6700		216.8			334.1		4000				6000
7038		190	290			46			235.1		370.8				4300		6300		222.1			351.8		3800				5600
7040		200	310			51			289.1		471.4				3800		5600		273.1			447.3		3600				5300
7044		220	340			56			325.3		559.4				3600		5300		307.3			530.8		3200				4800
7048		240	360			56			344.2		623.6				3200		4800		325.1			591.7		3000				4500
7052		260	400			65			491.1		700				2800		4300		462.8			664.3		2500				3900
7056		280	420			65			499		739.6				2500		3800		469.9			701.4		2100				3500
