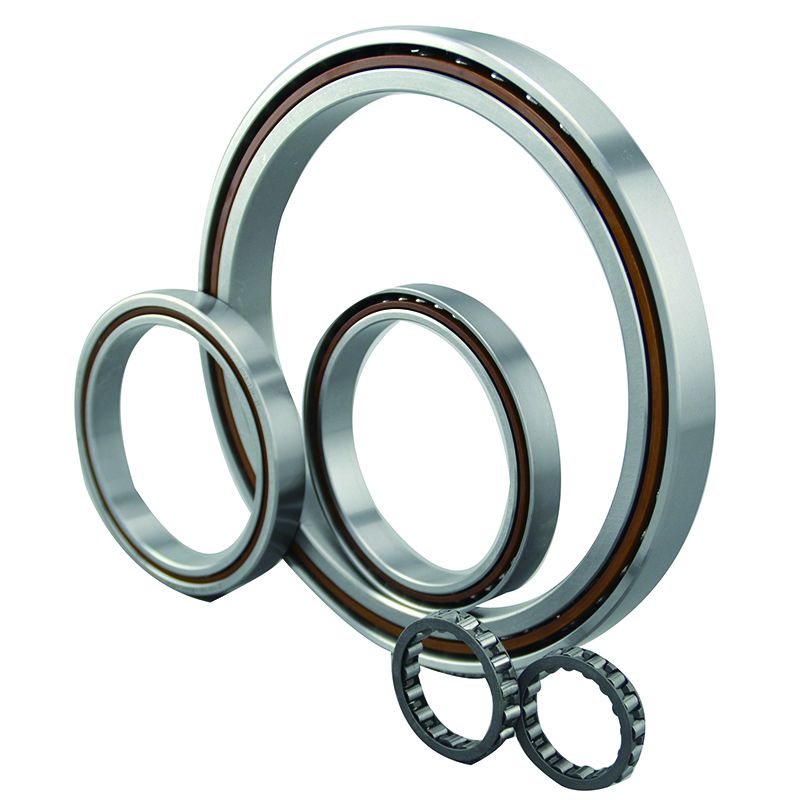

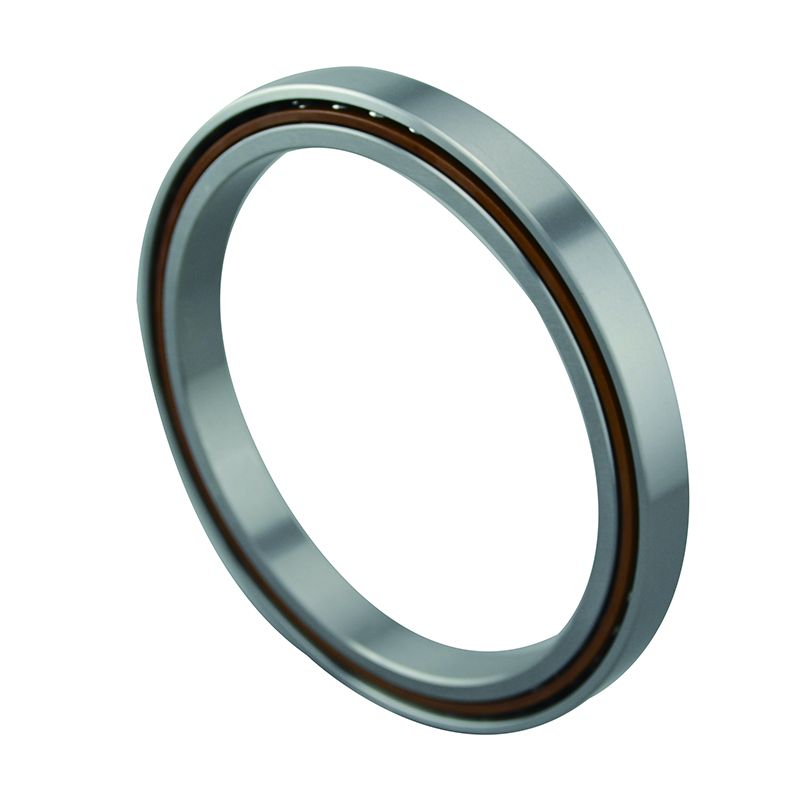

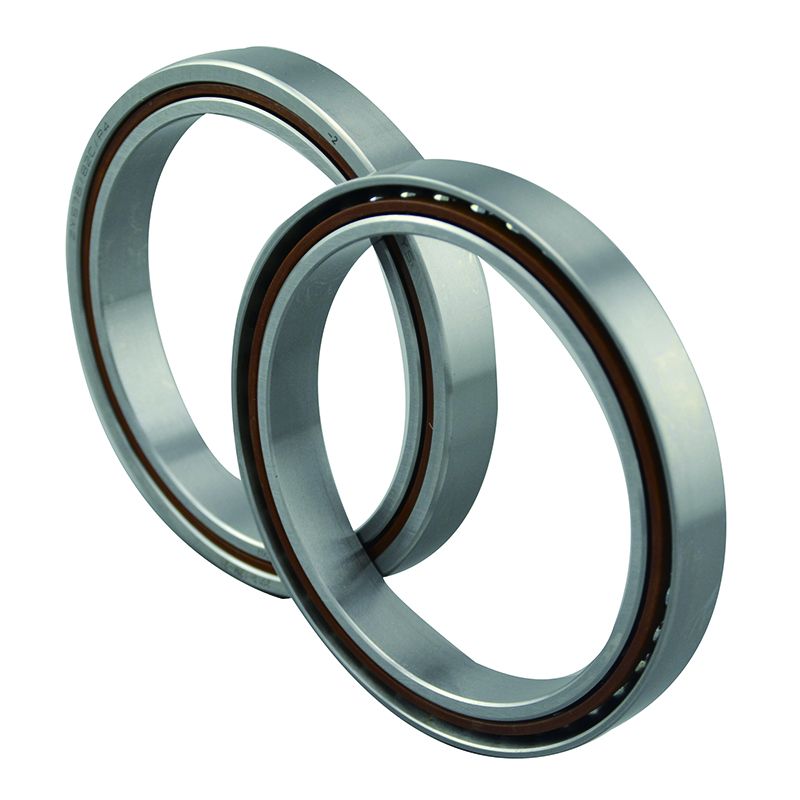

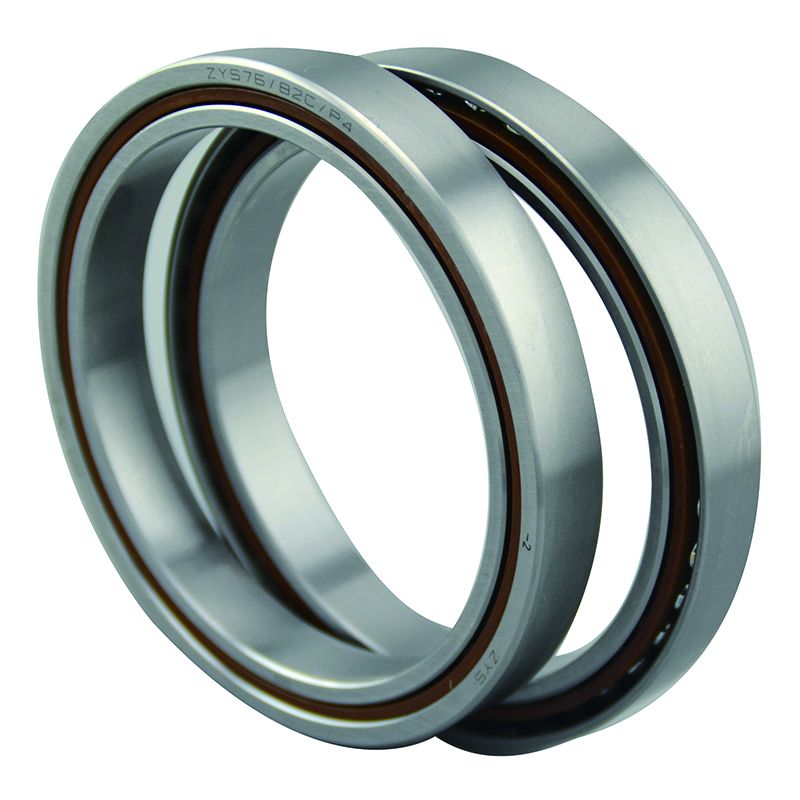

Four point contact ball bearing

The four-point contact ball bearing is the kind of bearing which can be separable. The 0000 type has a double semi-inner ring, and the OJ0000 type has a double semi-outer ring, and the contact angle is 35°. When there is pure radial load or no load, the steel ball and the ring are in four-point contact; under the action of pure axial load, the steel ball and the ring are in two-point contact and can withstand bidirectional axial load. This type of bearing can also withstand moment loads and combine the functions of single row and double row angular contact ball bearings. This kind of bearing can only guarantee normal operation when two-points contact is formed.

  • RELATED INDUSTRIES

Outer dimension (mm)

Rated Load (KN)

Action point (mm)

Bearing Model

Weight (kg)

d

D

B

rmin

Cr

Cor

a

QJ type

QJF type



100

180

34

2.1

195

215

98

QJ220

QJF220

4

200

360

70

4

535

850

280

QJ1240

QJF1240

32.5

260

480

90

5

815

1535

370

QJ1252

QJF1252

78

300

540

98

5

940

1915

420

QJ1260

QJF1260

105

360

540

82

5

750

1645

315

QJ1072

QJF1072

70.5

400

600

90

5

870

2030

350

QJ1080

QJF1080

95.5

420

620

90

5

885

2115

364

QJ1084

QJF1084

99.5

460

680

100

6

1010

2550

399

QJ1092

QJF1092

130

ZYS bearing designation

Outer dimensio (mm)

Rated Load ()

LubricatioSpeed (r/mi)

(d)

Bore Diameter

(D)

Outside Diameter

(B)

Width

(C)

Dynamic Load

(Co)

Static Load

Grease

Oil

QJ 203

17

40

12

15900

10600

14000

19000

QJ 205

25

52

15

25100

20000

9500

14000

QJ 206

30

62

16

35100

28500

8500

12000

QJ 207

35

72

17

46200

39000

7500

10000

QJ 208

40

80

18

52700

45000

6700

9000

QJ 209

45

85

19

58500

51000

6300

8500

QJ 210

50

90

20

61800

56000

5600

7500

QJ 211

55

100

21

79300

76500

5300

7000

QJ 212

60

110

22

92300

86500

4800

6300

QJ 213

65

120

23

104000

104000

4300

5600

QJ 214

70

125

24

114000

114000

4300

5600

QJ 215

75

130

25

117000

122000

4000

5300

QJ 216

80

140

26

138000

146000

3600

4800

QJ 217

85

150

28

148000

160000

3400

4500

QJ 218N2

90

160

30

174000

186000

3200

4300

QJ 219N2

95

170

32

199000

212000

3000

4000

QJ 220N2

100

180

34

225000

240000

2800

3800

QJ 222N2

110

200

38

265000

305000

2400

3400

QJ 224N2

120

215

40

286000

340000

2200

3200

QJ 226N2

130

230

40

296000

365000

1900

2800

QJ 228N2

140

250

42

325000

440000

1800

2600

QJ 230N2

150

270

45

338000

465000

1700

2400

QJ 232N2

160

290

48

390000

570000

1600

2200

QJ 234N2

170

310

52

397000

600000

1600

2200

QJ 236N2

180

320

52

436000

680000

1500

2000

QJ 248

240

440

72

650000

1200000

1000

1500

QJ 303

17

47

14

23400

15000

12000

17000

QJ 304

20

52

15

29600

20000

10000

15000

QJ 306

30

72

19

49400

39000

7500

10000

QJ 307

35

80

21

59200

46500

7000

9500

QJ 308

40

90

23

71500

58500

6300

8500

QJ 309

45

100

25

93600

76500

5600

7500

QJ 310

50

110

27

111000

91500

5000

6700

QJ 311

55

120

29

127000

108000

4500

6000

QJ 312

60

130

31

146000

125000

4300

5600

QJ 313

65

140

33

165000

146000

4000

5300

QJ 314

70

150

35

186000

166000

3600

4800

QJ 315N2

75

160

37

199000

186000

3400

4500

QJ 316N2

80

170

39

216000

208000

3200

4300

QJ 317N2

85

180

41

234000

236000

3000

4000

QJ 318N2

90

190

43

265000

N/A

2800

3800

QJ 319N2

95

200

45

286000

315000

2600

3600

QJ 320N2

100

215

47

307000

340000

2400

3400

QJ 322N2

110

240

50

364000

430000

2000

3000

QJ 324N2

120

260

55

390000

490000

1900

2800

QJ 326N2

130

280

58

423000

560000

1800

2600

QJ 328N2

140

300

62

468000

640000

1700

2400

QJ 332

160

340

68

540000

815000

1500

2000

QJ 334N2

170

360

72

618000

965000

1400

1900

QJ 336 N2

180

380

75

637000

1020000

1300

1800

QJ 344

220

460

88

780000

1400000

1000

1500
