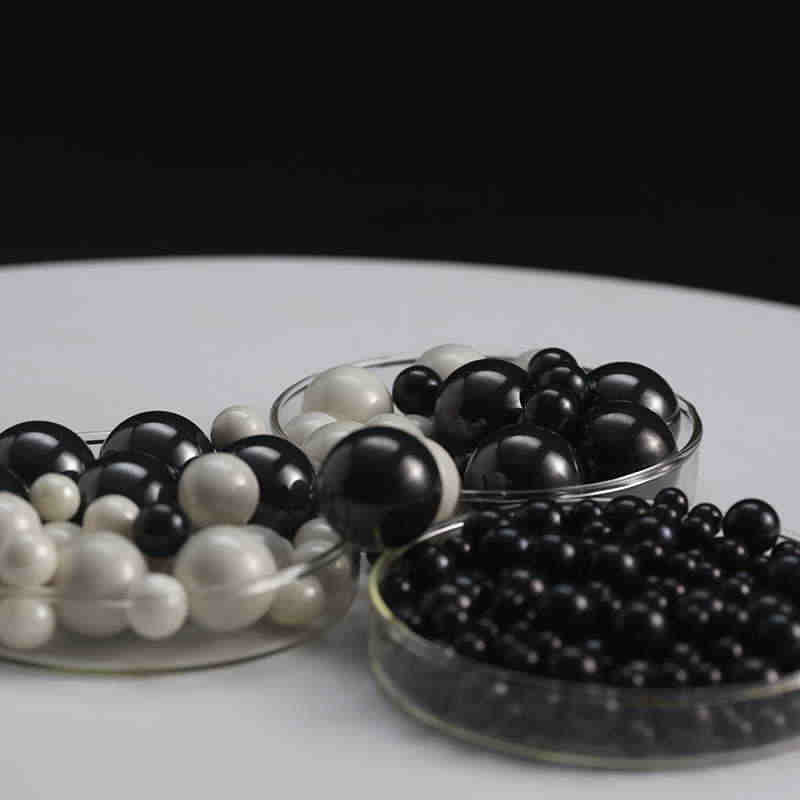

The development history of ZYS silicon nitride ceramic balls:
1986-1990 Exploratory research on ceramic bearings
1991-1995 Preliminary Research on Ceramic Ball Bearings and Ceramic Balls for Bearings
1996-2000 Mass manufacturing technology development of high-speed precision ceramic ball bearings
2000-now Comprehensively improve the level of silicon nitride manufacturing
Production process of ZYS silicon nitride ceramic balls:
Raw material-granulation-pressing-cold isostatic pressure vessel-air pressure sintering vessel-grinding process-testing and inspection-finished product.
Quality Assurance System:
Use laser confocal microscope and ultrasonic scanning microscope for particle size analysis, impurity content analysis, oxygen and nitrogen content analysis, phase composition analysis.
Performance testing:
Density, hardness, vibration value, crushing load, fracture toughness.
Product features of ZYS silicon nitride ceramic balls:
I. Excellent friction performance
2. Since the affinity of steel/ceramic matching is lower than that of steel/steel, when the lubricating film is not formed well or lacks lubrication, the lower affinity can effectively reduce the risk of adhesive friction.
3. Due to the high hardness of the ceramic ball, in the case of severe friction, the ceramic ball has good dimensional and shape accuracy retention and repairability to the groove to ensure the bearing running.
II. Small spin-to-roll ratio
Compared with steel bearings, the spin-to-roll ratio of ceramic ball bearings is about 30% lower, indicating that ceramic ball bearings have better contact conditions and lower spin friction.
III. Low temperature rise
Less heat; Small deformation; Low coefficient of friction; Small centrifugal force and gyro torque.
Item | Materials class |
I | II | III |
Property | Bending strength σ3.40 (Mpa) | 900 | 800 | 600 |
Crushing load ratio (%) | 35 | 35 | 30 |
Hardness (HV10) | 1580 | 1480 | 1380 |
Fracture toughness (Mpa.m1/2) | 6.0 | 5.0 | 5.0 |
Maximum limit of microstructure | Pore size (μm) | 10 | 10 | 25 |
Porosity (%) | 0.02 | 0.06 | 0.06 |
Crystal phase (μm) | 10 | 10 | 25 |
The second ceramic phase (μm) | 25 | 25 | 25 |
Maximum amount of inclusions per square centimeter of cross section | Range 200 (μm) | 0 | 0 | 1 |
Range 100～200 (μm) | 0 | 1 | 2 |
Range 50～100 (μm) | 1 | 2 | 4 |
Range 20～50 (μm) | 4 | 8 | 16 |
Application of Si3N4 ceramic ball |
| G3 | G5 | G10, G16 | G20, G28, G40 |
Class I | High speed power equipment |
Main drive bearing |
| |
Class II |
| Vacuum equipment, high speed instrument, mechanical devices,
| Motor | Testing ball, separating ball |
Class III | | | Sport, entertainment, food processing | Mechanical devices |
Si3N4 ceramic ball specifications |
Nominal diameter of ceramic ball | Nominal diameter of ceramic ball | Nominal diameter of ceramic ball |
mm | in | mm | in | mm | in |
0.794 | 1/32 | 0.8 | | 1 | |
1.588 | 1/16 | 2 | | 2.381 | 3/32 |
2.5 | | 3 | | 3.969 | 5/32 |
4 | | 4.5 | | 4.762 | 3/16 |
5 | | 5.5 | | 5.556 | 7/32 |
5.953 | 15/64 | 6 | | 6.35 | 1/4 |
6.5 | | 6.747 | 17/64 | 7 | |
7.144 | 9/32 | 7.5 | | 7.938 | 5/16 |
8.731 | 11/32 | 9.525 | 3/8 | 11.112 | 7/16 |
12.303 | 31/64 | 12.7 | 1/2 | 13.494 | 17/32 |
14.288 | 9/16 | 15.081 | 19/32 | 15.875 | 5/8 |
19.05 | 3/4 | 25.4 | 1 | 31.75 | 1 1/4 |
