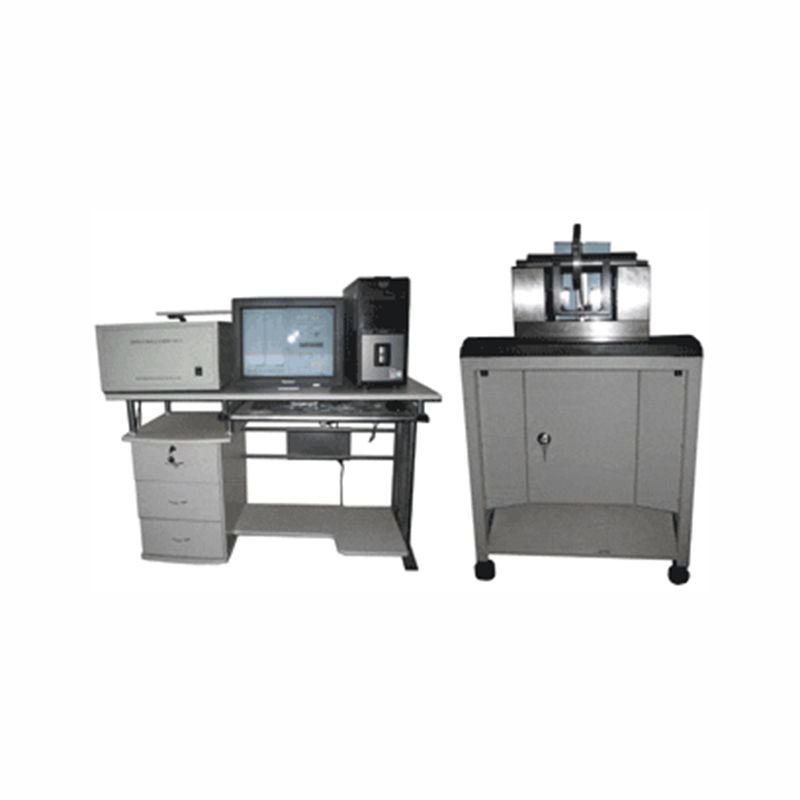

M6980 bearing starting friction torque measuring instrument


It is used for the measurement of static starting friction torque of tapered roller bearings, thrust bearings, joint bearings and hub bearings. The instrument adopts air loading guide rail system, precision shaft support, precision torque sensor, measurement system developed with visual virtual instrument software, so it has the advantages of friendly Human Machine Interface, automatic measurement and easy operation.

Technical parameters:

Measuring items: starting torque and dynamic torque

Size range: diameter φ3-50mm

Outer diameter: φ8- φ80mm, width 5-50mm

Measuring range: 04N.m; 5N.m (adjustable according to actual requirements)

Accuracy: ≤±0.5%F.S
