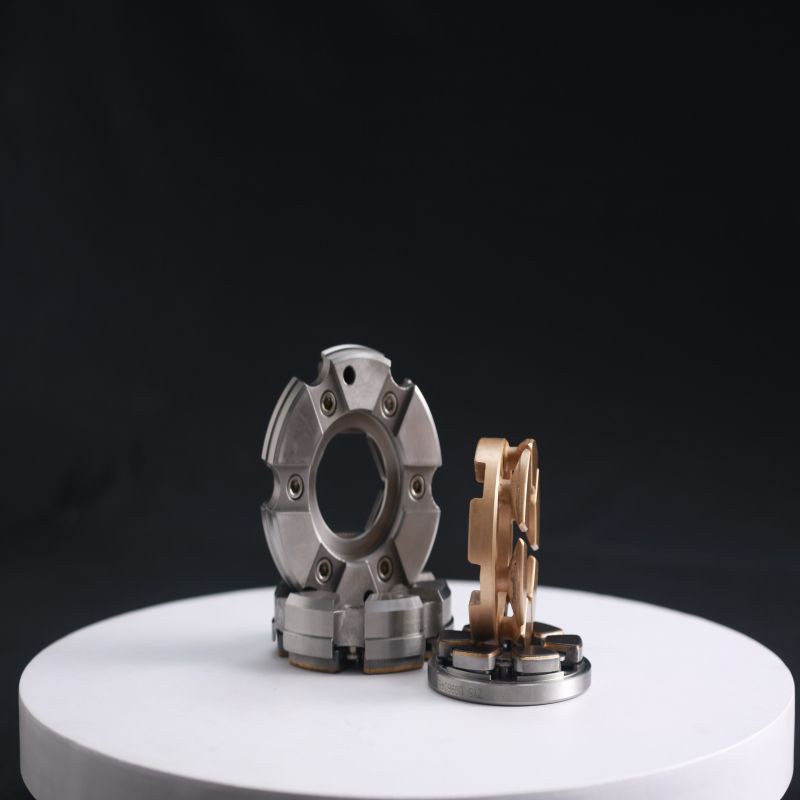

A tilting-pad thrust-journal bearing may be under both radial load and axial load and able to axially and radially form a layer of stable hydrodynamic film of lubricating oil. It features comprehensive performance of a tilting-pad journal bearing and a tilting-pad thrust bearing. The material of pad is Babbitt aIoy, 3-layer composite material, etc.
d (mm) | D (mm) | H (mm) | Number of axial pads | Number of radial pads | Radial load (kN) | Axial load (kN) |
40 | 106 | 50 | 8 | 5 | 0.4 | 0.5 |
50 | 120 | 80 | 8 | 5 | 0.6 | 1.1 |
60 | 130 | 93 | 10 | 5 | 0.8 | 1.4 |
75 | 150 | 106 | 10 | 5 | 1 | 2.2 |
90 | 160 | 118 | 12 | 5 | 1.2 | 2.7 |
100 | 180 | 131 | 12 | 5 | 1.5 | 3.3 |
115 | 190 | 144 | 12 | 5 | 1.8 | 3.8 |
125 | 215 | 160 | 12 | 5 | 2.1 | 4.2 |
140 | 230 | 172 | 12 | 5 | 2.5 | 4.6 |
150 | 255 | 185 | 12 | 5 | 2.9 | 5 |
