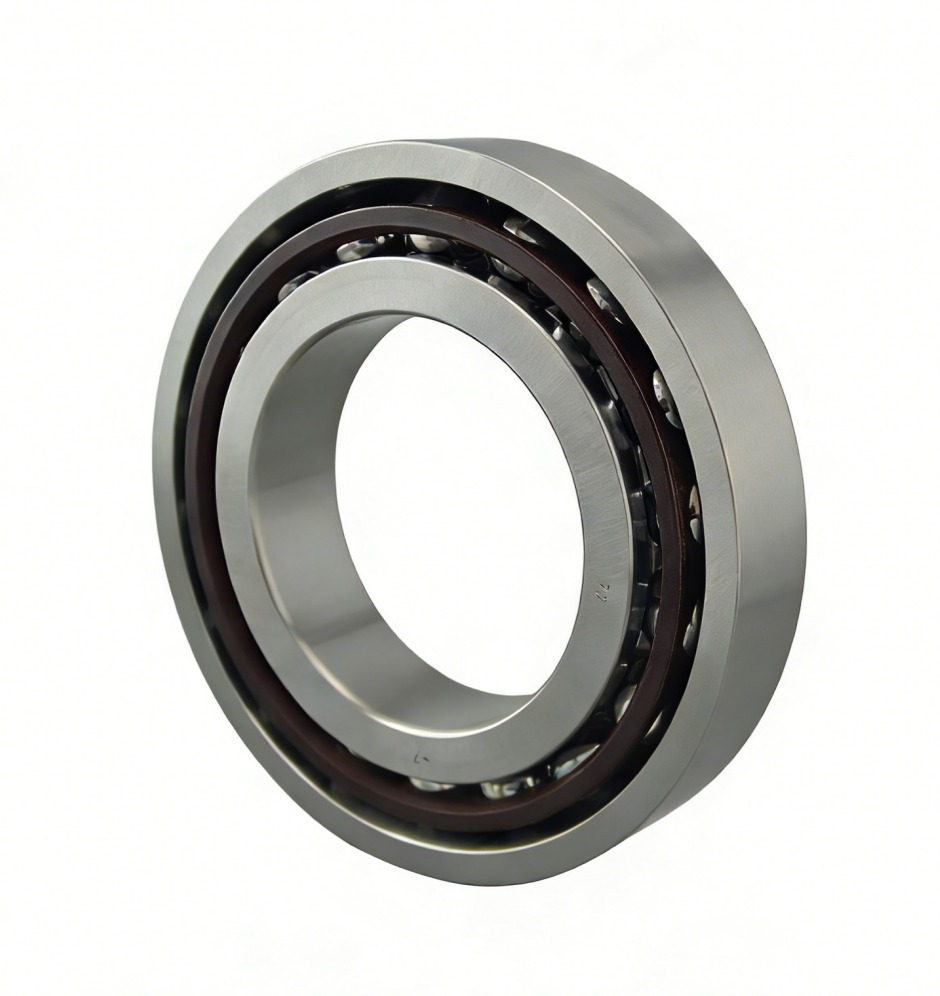

Angular contact ball bearings are nonseparable bearings with a defined contact angle in the radial direction relative to the straight line that runs through the point where each ball makes contact with the inner and outer rings. In addition to radial loads, angular contact ball bearings can accommodate single direction axial loads. Since an axial load is generated from a radial force, these bearings are generally used in pairs. Typically ideal for machine tools, feed screw mechanisms, ball screw support units, etc.
Specifications of angular contact ball bearings
Raceway Shape | Angular Contact Ball Bearing (Single Row) | Inner/Outer Ring Material | Steel |
Shield Material/Shape | Open Type | Outer Ring Shape | Flat |
Precision | Grade p5 | Inner Diameter d(Ø) | 20 |
Outer Diameter D(Ø) | 47 | Width B(mm) | 14 |
Basic Dynamic Load Rating(N) | 14500 | Maximum Allowable Rotation Speed(rpm) | 17000 |
Specifications/Environment | Standard | Load Direction | Radial |
Number of Raceway Ring Rows | Single Row | Size Standards | Metric |
Rolling Element Material | Steel | Cage | PA46-GF25-JB |
