Finished bearing measuring instruments

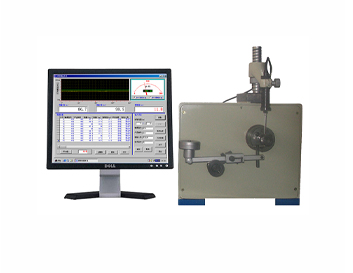

1. Radial clearance measuring instrument (inner diameter 3mm-outer diameter 300mm)
Including X092J, X093JB, X094J baseline clearance measuring instrument and X095J multifunctional clearance measuring instrument.

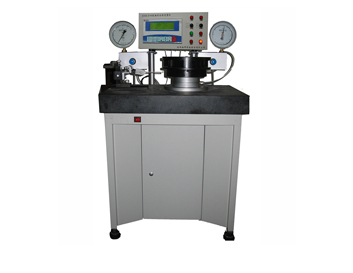

2. Axial clearance measuring instrument (inner diameter 3mm-outer diameter 300mm)
Including X093Z, X095Z clearance measuring instrument which can realize the dynamic high precision measurement.

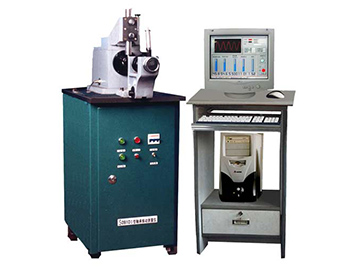

3. Bearing vibration measuring instrument (inner diameter 10mm-outer diameter 200mm)
Used for bearing vibration detection, abnormal sound detection, fault diagnosis.

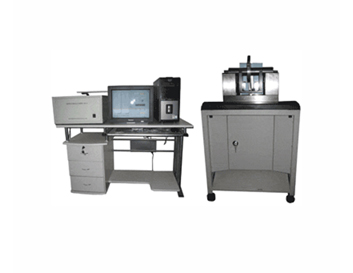

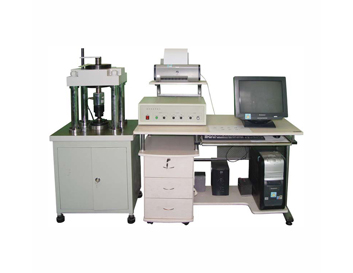

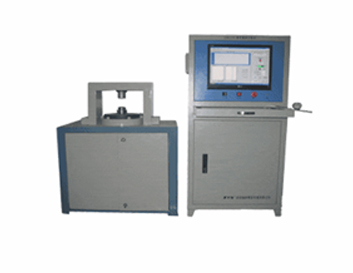

4. Bearing friction torque measuring instrument
For the measurement of bearing dynamic torque and starting torque. The torque of paired bearing can also be measured.

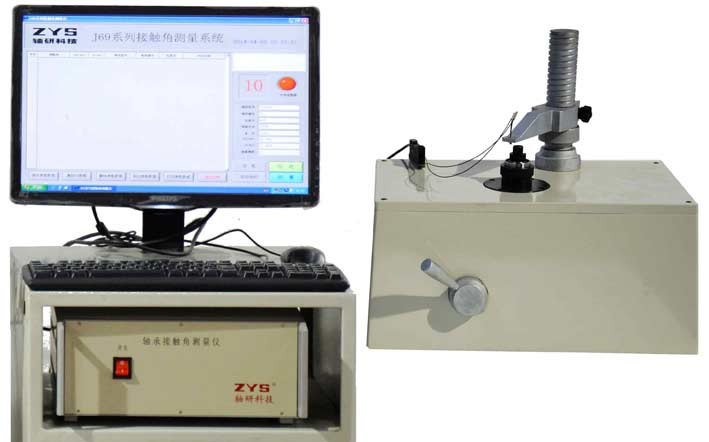

5. Bearing convexity value measuring instrument (inner diameter 4mm-outer diameter 1000mm)
Used for the measurement of the convexity value after the bearing is preloaded and also for the convexity value measurement of the paired finished bearing.
6. Bearing stiffness and preload measuring instrument
Used for measuring bearing stiffness and preload of angular contact ball bearing under loading condition.

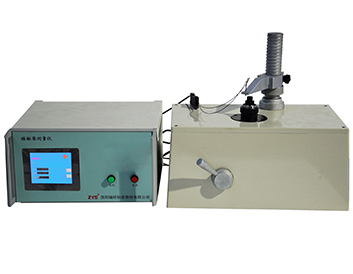

7. Bearing contact angle measuring instrument
Used for measuring the contact angle of angular contact ball bearing under working condition.

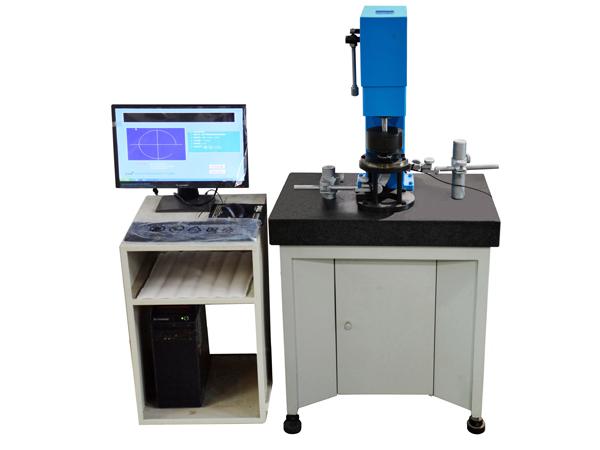

8. Bearing rotation precision measuring instrument
Used for high-precision measurement of bearing inner and outer ring runout.
9. Bearing fault diagnosis and warning system
Used for monitoring the bearing status of large production lines or important equipments in the fields of metallurgy, papermaking, electric power and railway.
