Non-ISO Metric ball screw bearing

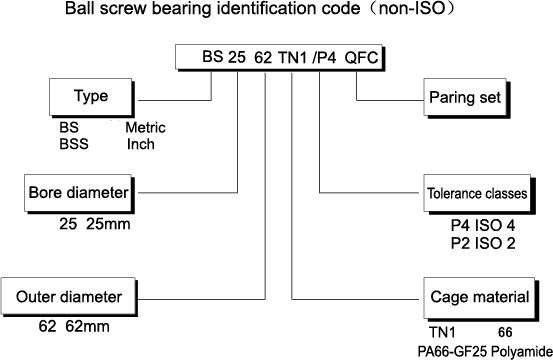

ZYS ball screw bearings also have BS and BSS series; BS stands for non-standard metric series while BSS stands for Inch series.

  • RELATED INDUSTRIES

Bearing model

Dimensions (mm)

Rated load (KN)

Limit speed (r/min)

MAX axial load (KN)

Preload (KN)

Friction torque (N.mm)

Weight (kg)



d

D

B

rsmin

a

Ca

Coa

Grease









BS1547

15

47

15

1.0

35

21.5

27

12000

11.5

2.6

50

0.13

BS1747

17

47

15

1.0

35

21.5

27

12000

11.5

2.6

50

0.14

BS2047

20

47

15

1.0

37

19.3

25

12000

10.6

2.3

50

0.13

BS2562

25

62

15

1.0

46

28.5

41.5

9000

18.0

3.3

85

0.24

BS3062

30

62

15

1.0

48

26

39

9000

17.0

2.9

85

0.23

BS3072

30

72

15

1.0

52

31

54

8000

22.0

3.4

115

0.35

BS3572

35

72

15

1.0

54

30

50

8000

21.2

3.3

115

0.30

BS4072

40

72

15

1.0

56

28

49

8000

21.2

2.9

115

0.26

BS4090

40

90

20

1.5

67

50

83

6300

35.5

5.6

225

0.65

BS4575

45

75

15

1.0

60

28.5

52

7500

22.4

3.1

130

0.26

BS45100

45

100

20

1.5

74

58.8

104

5600

45.0

6.9

300

0.81

BS50100

50

100

20

1.5

76

58.5

104

5600

45.0

7.0

330

0.75

BS5590

55

90

15

1.0

70

32.5

65.5

6300

28.0

3.6

190

0.38

BS55100

55

100

20

1.5

77

40.5

81.5

6000

33.5

4.6

250

0.75

BS55120

55

120

20

1.5

86

60

116

5000

50.0

6.8

360

1.18

BS60120

60

120

20

1.5

88

61

120

4800

53.0

7.0

380

1.11

BS75110

75

110

15

1.5

88

35.5

83

5000

33.5

4.6

250

0.75

BS100150

100

150

22.5

2.0

120

69.5

173

3800

71.0

7.5

600

1.37

         INCH

BSS2047

20.0000

47

15.875

1.0

38

19.3

25

12000

10.6

2.3

50

0.13

BSS2362

23.838

62

15.875

1.0

45

28.5

41.5

9000

18.0

3.3

85

0.24

BSS3872

38.100

72

15.875

1.0

56

28

49

8000

21.2

2.9

115

0.26

BSS4476

44.475

76.2

15.875

1.0

60

28.5

52

7500

22.4

3.1

130

0.26

BSS5790

57.150

90

15.875

1.0

72

32.5

65.5

6300

28.0

3.6

190

0.38

BSS76110

76.200

110

15.875

1.0

88

35.5

83

5000

33.5

4.6

250

0.75

BSS101145

101.600

145

22.225

1.5

118

69.5

173

3800

71.0

7.5

600

1.37
