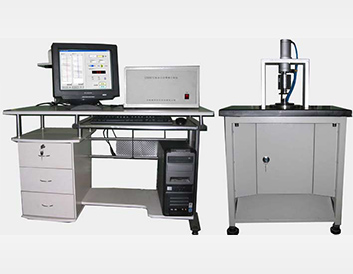

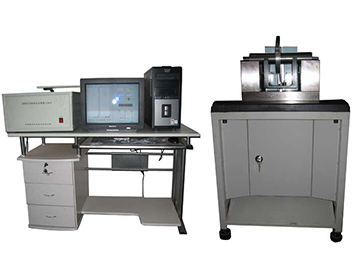

Bearing friction torque measuring instrument

Application of bearing friction torque measuring instrument: it is suitable for testing the precision bearing rotation flexibility in the measuring room of bearing manufacturing workshop and quality identification of the bearing submitted for inspection by the testing institution.


The friction torque is an important factor affecting the noise, vibration and life of the bearing and also a main index to measure the dynamic performance of the bearing.

ZYS developed series of bearing friction torque measuring instruments according to relevant standards and user requirements.

The bearing friction torque measuring instruments are suitable for measuring dynamic friction torque (maximum friction torque, average friction torque and torque fluctuation)

of various bearings, such as deep groove ball bearings, angular contact bearings, single row tapered roller bearings, etc.

Features of bearing friction torque measuring instrument:

Axial loading, synchronous drive, reduce of basic friction torque with air bearing, and dynamic measurement of bearing friction torque variation with integral torque sensor.

The measured curve of friction torque can provide reliable basis for users to analyze the bearing quality and further complete the optimization design of bearing and improve

the processing technology. The bearing friction torque measuring instrument has obtained national patents and won the third prize for Mechanical industry science and

technology progress award.

Model

Measuring bearing range (mm)

Measuring range of moment

Axial load

Speed

Indication error

Air supply

M695

Angular contact ball bearing in pairs

Inner diameter: Φ1050

0-50N*mm

100-500N

0.5/2μm

±1%

0.4-0.5MPa

M992

Inner diameter: Φ28

0-100N*μm

1-4N

2rpm

±2.5%

0.3-0.5MPa

M9908B

Inner diameter: Φ830

0-5N*mm/ 0-50N*mm

15N

5rpm

±1%

0.3-0.5MPa

M8930

Outer diameter: Φ30100

0-100N*mm

100-500N

2-50r/min

±1%

0.3-0.5MPa
