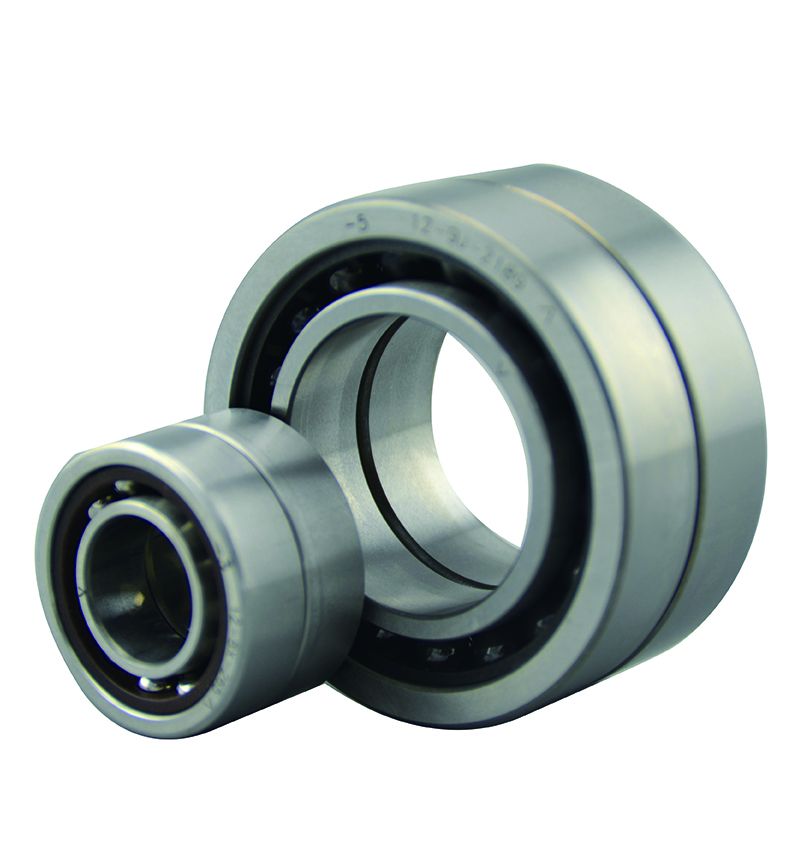

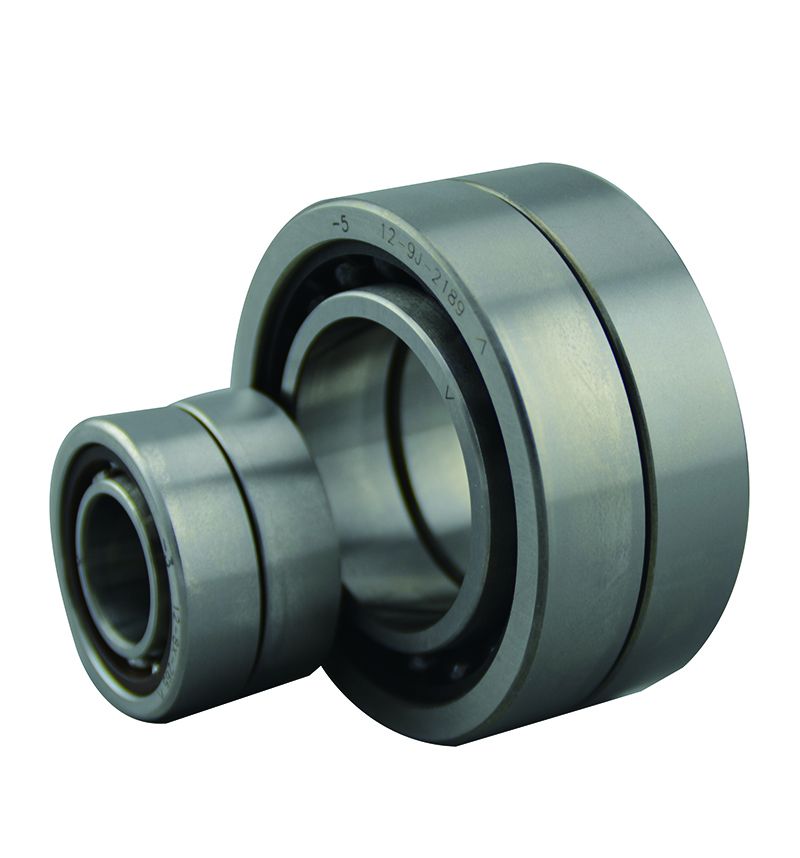

Thrust angular contact ball bearing
ZYSN and ZYSF series thrust angular contact ball bearings are precision bearings, mainly used for screw drive. Aangular contact thrust ball bearing is a complete bearing unit consisting of a whole outer ring, two inner rings, steel balls, cages and sealing rings.
After assembly, the bearing is O - shaped (DB) with a contact Angle of 60. It can withstand both axial and radial loads by applying a preload through a precision lock nut.
Angular contact ball thrust bearings are sealed on both sides, grease lubricated and designed with relubrication structure. The cage is made of polyamide PA66-GF25 material and can work continuously for a long time under the working temperature below 120C.
