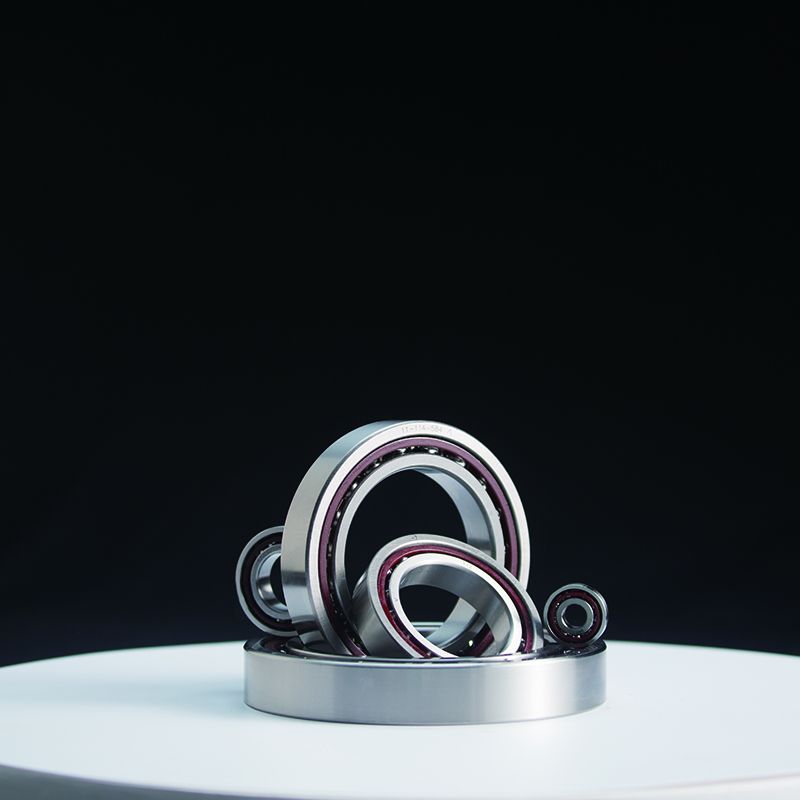

B70, B70/HQ1 Series Single row angular contact ball bearing

Bearing type: High speed spindle bearing

Bearing series: B70, B70/HQ1 Series

Inner diameter size range: 10-60mm

Performance characteristics: Ultra high speed; high stiffness; suitable for oil mist lubrication

PRODUCT LIST
RELATED INDUSTRIES

Bearing designation ZYS	Boundary dimension					Rated load		Limit speed
	Boundary dimension					Rated load		Limit speed
	d	D	B	rsmin	r1smin	Cr	Cor	Grease	Oil
	mm					KN		r/min
B7000C	10	26	8	0.30	0.15	3.0	1.2	80000	130000
B7000C/HQ1	10	26	8	0.30	0.15	3.0	1.2	100000	160000
B7001C	12	28	8	0.30	0.15	3.3	1.3	70000	110000
B7001C/HQ1	12	28	8	0.30	0.15	3.3	1.3	85000	130000
B7002C	15	32	9	0.30	0.15	3.6	1.6	60000	90000
B7002C/HQ1	15	32	9	0.30	0.15	3.6	1.6	75000	110000
B7003C	17	35	10	0.30	0.15	3.9	1.7	53000	80000
B7003C/HQ1	17	35	10	0.30	0.15	3.9	1.7	67000	100000
B7004C	20	42	12	0.60	0.15	5.7	2.7	45000	67000
B7004C/HQ1	20	42	12	0.60	0.15	5.7	2.7	56000	85000
B7005C	25	47	12	0.60	0.15	7.4	3.8	38000	56000
B7005C/HQ1	25	47	12	0.60	0.15	7.4	3.8	45000	67000
B7006C	30	55	13	1.00	0.30	9.1	4.8	32000	48000
B7006C/HQ1	30	55	13	1.00	0.30	9.1	4.8	38000	56000
B7007C	35	62	14	1.00	0.30	10.9	6.0	28000	43000
B7007C/HQ1	35	62	14	1.00	0.30	10.9	6.0	34000	53000
B7008C	40	68	15	1.00	0.30	12.9	7.4	26000	40000
B7008C/HQ1	40	68	15	1.00	0.30	12.9	7.4	32000	48000
B7009C	45	75	16	1.00	0.30	15.0	9.0	24000	38000
B7009C/HQ1	45	75	16	1.00	0.30	15.0	9.0	30000	45000
B7010C	50	80	16	1.00	0.30	15.9	10.0	22000	36000
B7010C/HQ1	50	80	16	1.00	0.30	15.9	10.0	26000	43000
B7011C	55	90	18	1.10	0.60	19.9	12.9	19000	32000
B7011C/HQ1	55	90	18	1.10	0.60	19.9	12.9	22000	38000
B7012C	60	95	18	1.10	0.60	20.4	13.6	18000	30000
B7012C/HQ1	60	95	18	1.10	0.60	20.4	13.6	21000	36000
