Thin section angular contact ball bearings

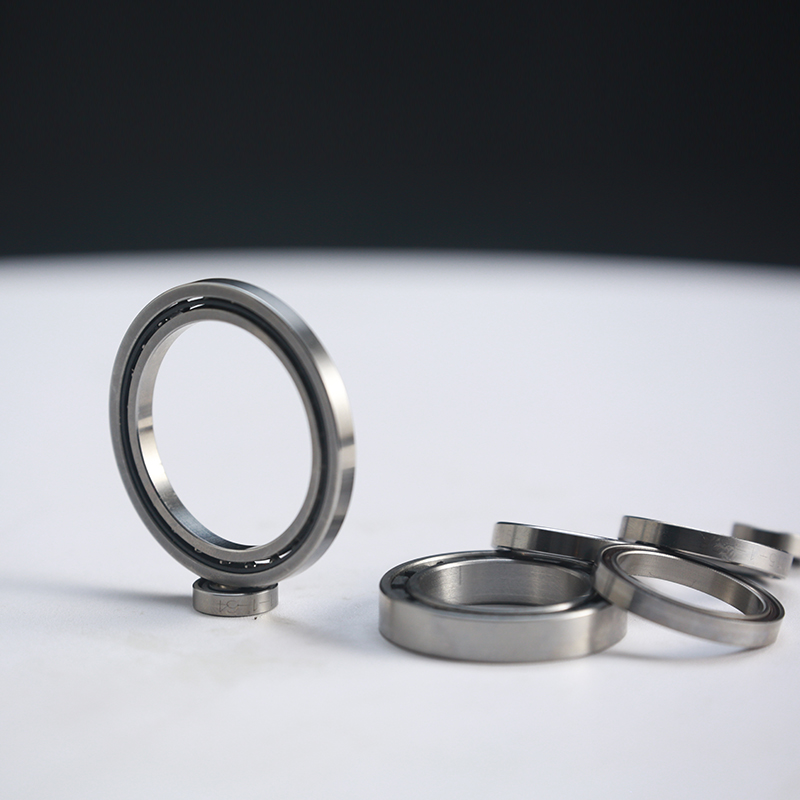

ZYS thin section angular contact ball bearings are used as main bearings for the main support part of RV reducer. Thin wall bearings are widely used in industrial robots due to their small size, strong impact resistance, large torque, and high positioning accuracy. Code examples of this series of robot bearings: ZR76/50/P4, ZR718/50/P4,where ZR76 and ZR718 represent thin-wall angular contact ball bearing; 50 represents bearing inner diameter; P4 represents accuracy grade.

Send Inquiry

PRODUCT LIST
RELATED INDUSTRIES

Single row angular contact ball bearings can withstand radial load and axial load in one direction at the same time, and can also bear pure axial load in single direction.

When subjected to radial loads, it will cause axial component. Therefore, single row angular contact ball bearings often need to be matched with other bearings which stand

the axial load in the opposite direction.
ZYS robot angular contact ball bearings are used as main bearings for RV reducers, generally with larger contact angles and can withstand larger axial loads. The inner and

outer rings and rolling elements are made of ZYS steel #3 with higher wear resistance and impact toughness, which is specially developed by ZYS and domestic famous steel

plant. The cage materials are phenolic resin with excellent performance or high performance engineering plastics. Its outer diameter and width are non standard, smaller than

the dimension of angular contact ball bearings under general working condition. It is mainly applied in the main support part of RV reducer, as the main bearing.

Specification	Dimension (mm)				Rated load (KN)
Specification	d	D	B	Rs	Dynamic Cr	Static Cor
ZR76/50TN1/P4	50	65	9	0.3	11.8	12.6
ZR76/55TN1/P4	55	70	9	0.3	13.2	15.4
ZR76/60TN1/P4	60	75	11	0.3	15.7	18.2
ZR76/65TN1/P4	65	80	11	0.3	17.4	20.3
ZR76/70TN1/P4	70	85	11	0.3	18.6	23.4
ZR76/75TN1/P4	75	95	13	0.6	23.1	29.3
ZR76/82TN1/P4	82	102	13	0.6	29.1	31.0
ZR76/85TN1/P4	85	105	13	0.6	29.6	31.9
ZR76/90TN1/P4	90	110	13	0.6	30.7	34.1
ZR76/95TN1/P4	95	115	13	0.6	33.9	36.2
ZR76/100TN1/P4	100	120	13	0.6	36.2	39.8
ZR76/105TN1/P4	105	125	13	0.6	38.6	43.4
ZR76/110TN1/P4	110	130	13	0.6	40.4	48.6
ZR76/115TN1/P4	115	145	15	0.6	31.6	40.1
ZR76/120TN1/P4	120	145	15	1.0	43.1	52.1
ZR76/130TN1/P4	130	155	15	1.0	45.3	57.2
ZR76/140TN1/P4	140	170	17	1.0	47.8	59.5
ZR76/150TN1/P4	150	180	17	1.0	49.2	63.4
ZR76/160TN1/P4	160	195	19	1.1	53.0	68.7
ZR76/170TN1/P4	170	205	19	1.1	59.6	74.8
ZR76/180TN1/P4	180	215	19	1.1	71.5	85.4
ZR76/182TN1/P4	182	214	17.4	1.1	61.8	80.4
ZR76/190TN1/P4	190	225	19	1.1	79.2	102.8
ZR76/200TN1/P4	200	240	21	1.1	91.3	115.2
ZR76/220TN1/P4	220	260	21	1.1	106.2	132.6
ZR76/230TN1/P4	230	290	26	1.1	118.6	154.2
ZR76/240TN1/P4	240	290	26	1.5	132.7	153.8
ZR76/280TN1/P4	280	330	26	1.5	159.8	178.3
ZR76/300TN1/P4	300	350	26	1.5	183.4	193.6
ZR76/350TN1/P4	350	400	26	1.5	220.5	246.7
ZR76/400TN1/P4	400	450	26	1.5	258.7	294.8
ZR76/450TN1/P4	450	500	26	1.5	291.3	352.5
ZR76/500TN1/P4	500	550	26	1.5	336.2	415.9

Specification	Dimension (mm)				Rated load (KN)
Specification	d	D	B	Rs	Dynamic Cr	Static Cor
ZR718/50TN1/P4	50	65	7	0.3	12.3	16.7
ZR718/55TN1/P4	55	72	9	0.3	17.0	23.0
ZR718/60TN1/P4	60	78	10	0.3	22.3	30.0
ZR718/65TN1/P4	65	85	10	0.3	22.3	31.3
ZR718/70TN1/P4	70	90	10	0.3	23.0	33.8
ZR718/75TN1/P4	75	95	10	0.6	23.7	36.2
ZR718/80TN1/P4	80	100	10	0.6	24.2	38.5
ZR718/85TN1/P4	85	100	13	0.6	35.8	53.7
ZR718/90TN1/P4	90	115	13	0.6	36.2	55.8
ZR718/95TN1/P4	95	120	13	0.6	36.5	57.8
ZR718/100TN1/P4	100	125	13	0.6	37.5	61.7
ZR718/105TN1/P4	105	130	13	0.6	37.8	63.8
ZR718/110TN1/P4	110	140	16	0.6	53.0	86.0
ZR718/120TN1/P4	120	150	16	1.0	55.2	94.8
ZR718/130TN1/P4	130	165	18	1.0	64.5	112.7
ZR718/140TN1/P4	140	715	18	1.0	74.7	132.0
ZR718/150TN1/P4	150	190	20	1.0	85.3	153.3
ZR718/160TN1/P4	160	190	16	1.1	87.3	140.2
ZR718/170TN1/P4	170	215	22	1.1	110.8	143.1
ZR718/200TN1/P4	200	250	24	1.1	104.6	156.2
ZR718/320TN1/P4	320	383	28	1.1	140.0	258.4
